Model Whirlpool F4397^0 – Common Parts & Diagrams
03 - MAIN TOP
04 - WIRE HARNESS/COMPONENTS/GRIDDLE
08 - WIRING DIAGRAM

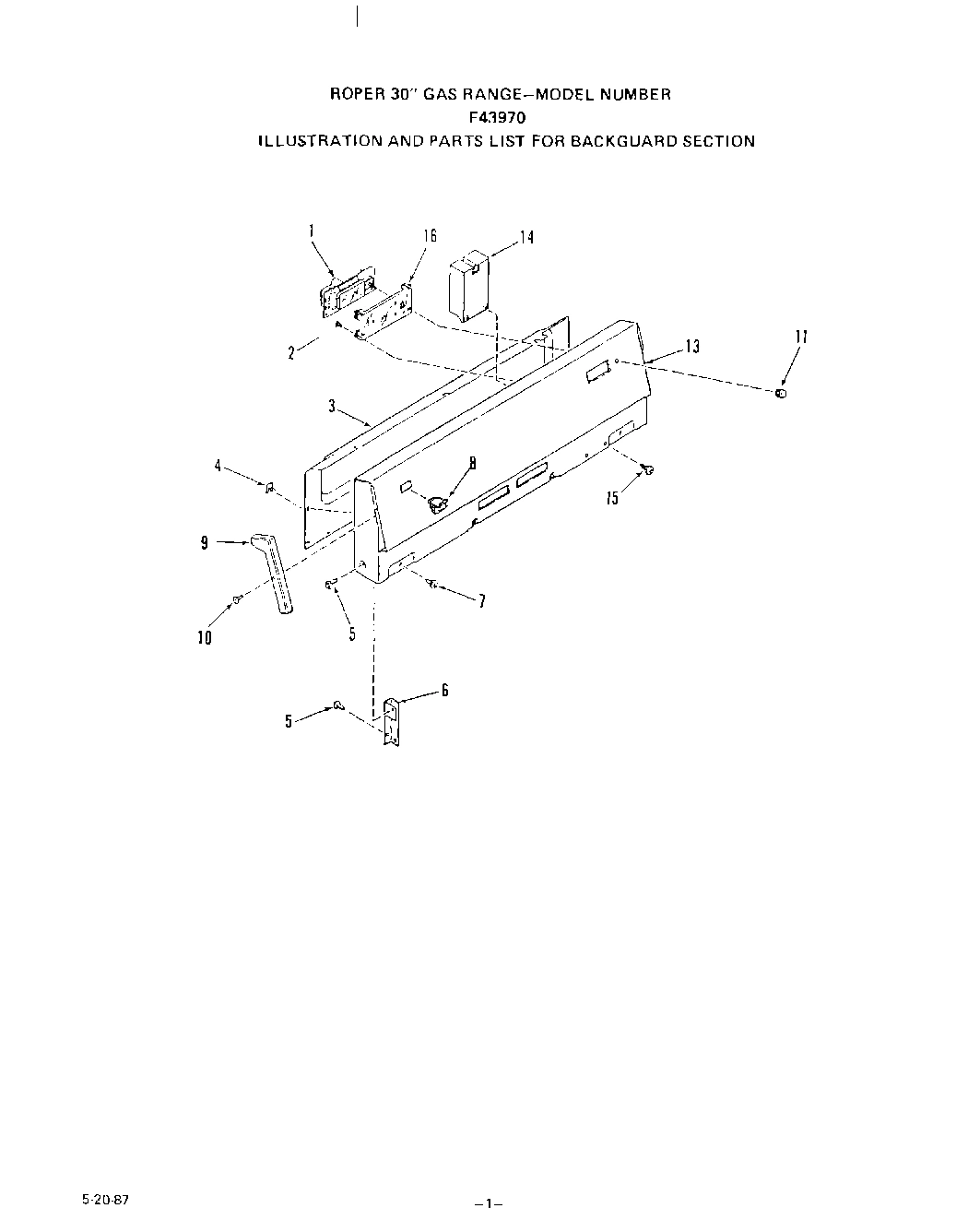

02 - BACKGUARD

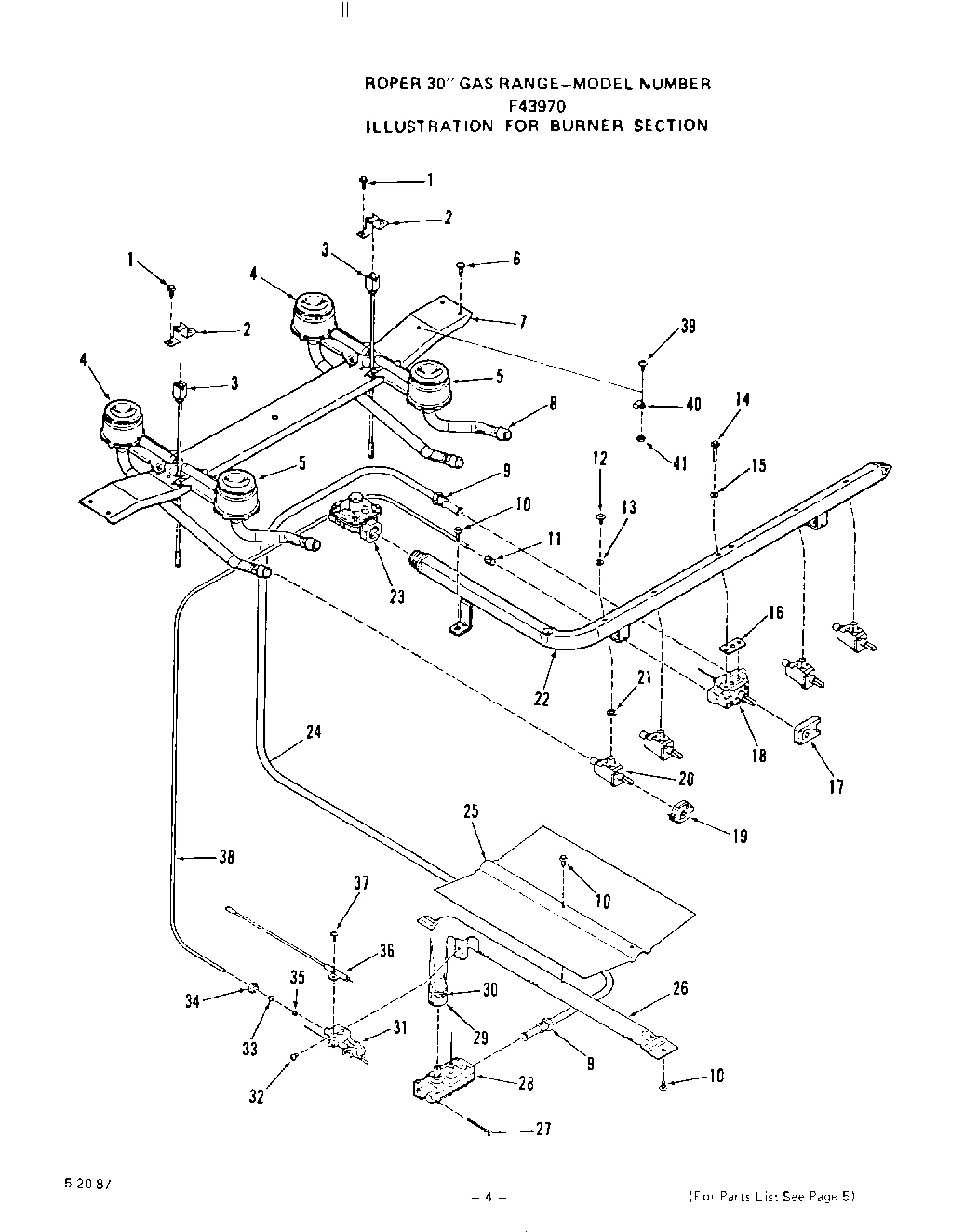

05 - BURNER
01 - COVER

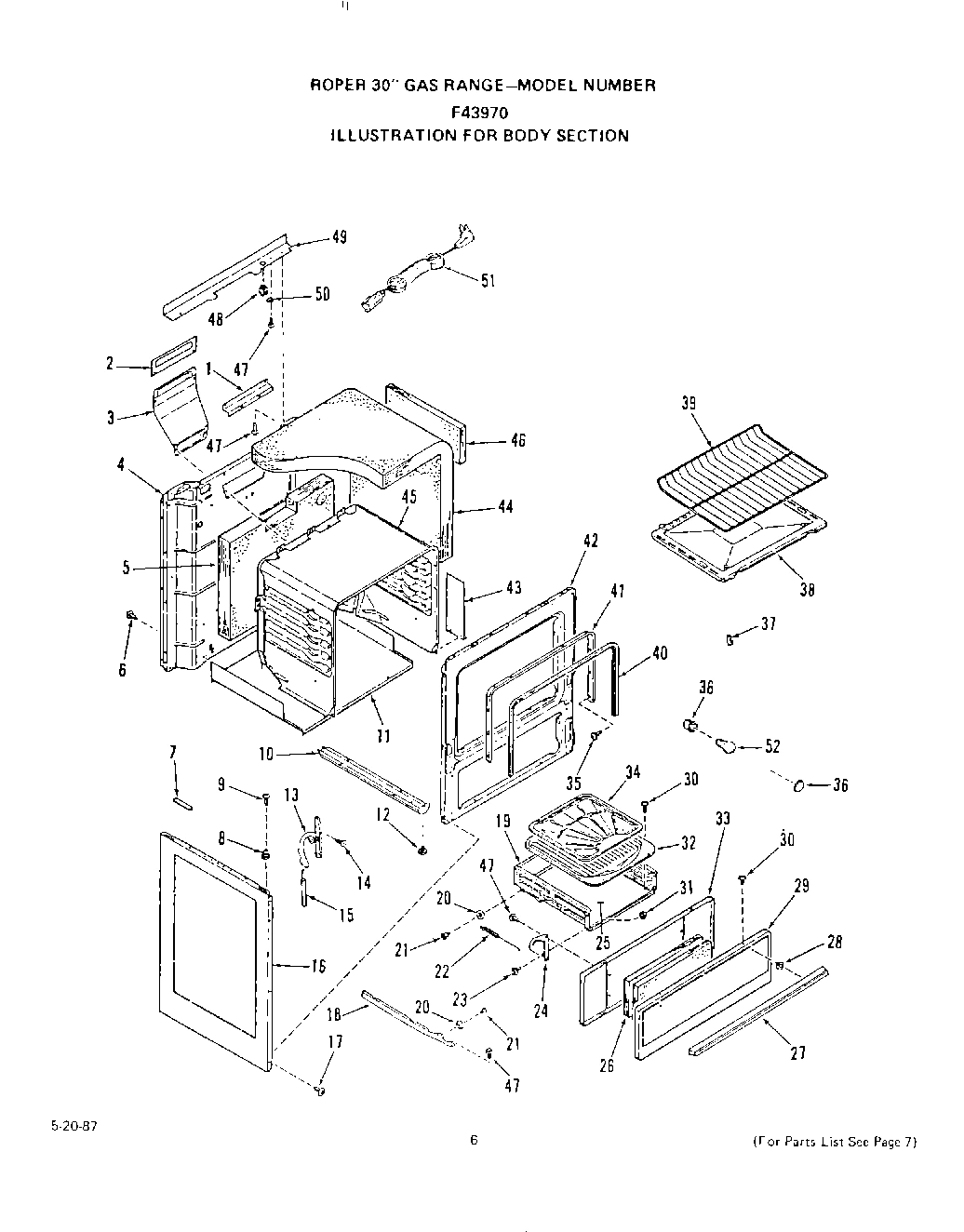

06 - BODY
Common parts from model Whirlpool F4397^0

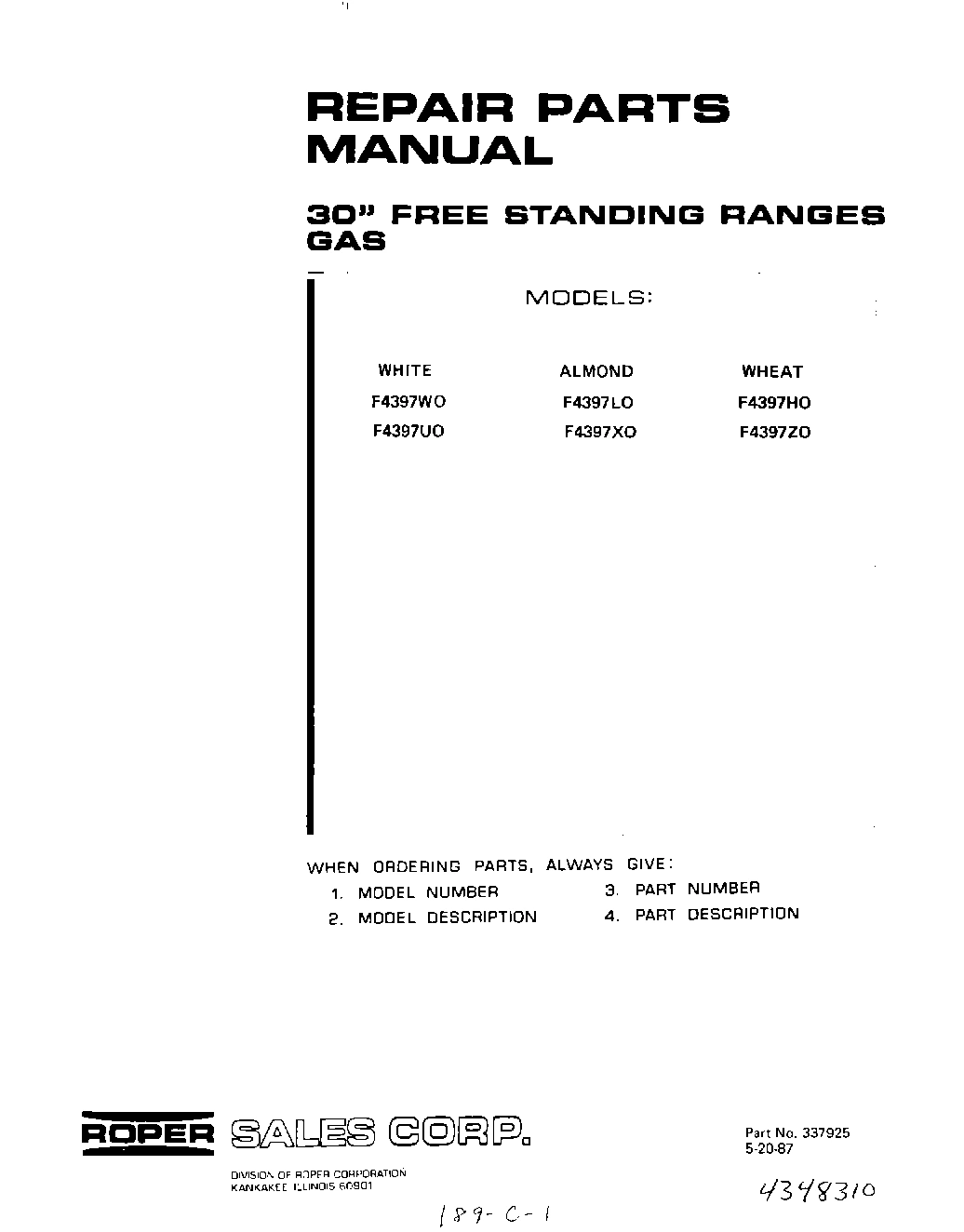

xUse & Care Manual WPL 335338 Contact Us For Availability
xInstallation Guide WPL 335344 Contact Us For Availability
xRepair Parts List WPL 337925 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Clock WPL 335616 Contact Us For Availability
1
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
1
Flue Deflector Support WPL 334528 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Screw 6-32x1/2`` WPL 336677 Contact Us For Availability
2
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
2
Flue Insulation WPL 329314 Contact Us For Availability
3
Hinge Bracket WPL 335975 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
3
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
3
Wire Cover WPL 335841 Contact Us For Availability
3
Electrode (Right) WPL 313629 Contact Us For Availability
3
Electrode (Left) WPL 334509 Contact Us For Availability
3
Flue Deflector WPL 327079 Contact Us For Availability
4
Hinge (Right) WPL 320921 Contact Us For Availability
4
Hinge (Left) WPL 320922 Contact Us For Availability
4
Trim Clip WPL 70588 Contact Us For Availability
4
Rear Burner-Lt. or Rt.. (Inc`s. Key 8) WPL 333223 Contact Us For Availability
4
Back-Main WPL 327087 Contact Us For Availability
5
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
5
Front Burner-Lt. or Rt. (Inc`s. Key 8) WPL 333222 Contact Us For Availability
5
Oven Back Insulation WPL 328142 Contact Us For Availability
6
Main top (White) WPL 332318 Contact Us For Availability
6
Main Top (Wheat) WPL 332323 Contact Us For Availability
6
Main Top (Almond) WPL 332324 Contact Us For Availability
6
Support (Right) WPL 327106 Contact Us For Availability
6
Support (Left) WPL 327107 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
7
Burner Box Bottom WPL 333544 Contact Us For Availability
7
Support-Top Burner WPL 333607 Contact Us For Availability
7
Main Top Spacer WPL 335320 Contact Us For Availability
8
Manifold Panel WPL 335757 Contact Us For Availability
8
Switch-Oven Light WPL 334649 Contact Us For Availability
8
Air Shutter WPL 327198 Contact Us For Availability
8
Strike WPL 333892 Contact Us For Availability
9
Thermostat Knob WPL 333786 Contact Us For Availability
9
End Cap (Right) WPL 326284 Contact Us For Availability
9
End Cap (Left) WPL 326285 Contact Us For Availability
9
G.M. Inverted Nut 3/8`` WPL 142433 Contact Us For Availability
9
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
10
Gas Valve Knob WPL 333785 Contact Us For Availability
10
Screw WPL 329382 Contact Us For Availability
10
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
11
Knob-Clock WPL 334961 Contact Us For Availability
11
Loxit Nut WPL 79673 Contact Us For Availability
11
Bottom-Main WPL 327053 Contact Us For Availability
12
Support Rod WPL 334482 Contact Us For Availability
12
Screw (For Key 20) WPL 311455 Contact Us For Availability
12
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
13
Clamp WPL 326348 Contact Us For Availability
13
Panel-Backguard-Black WPL 336219 Contact Us For Availability
13
Gasket (For Key 12) WPL 311692 Contact Us For Availability
13
Oven Door Hinge (Right) WPL 332345 Contact Us For Availability
13
Oven Door Hinge (Left) WPL 332346 Contact Us For Availability
14
Cleat WPL 335735 Contact Us For Availability
14
Module - Spark Igniter WPL 326136 Contact Us For Availability
14
Screw (For Key 18) WPL 318478 Contact Us For Availability
14
Screw WPL 331704 Contact Us For Availability
15
Manifold Panel Bracket (Right) WPL 333351 Contact Us For Availability
15
Manifold Panel Bracket (Left) WPL 333352 Contact Us For Availability
15
Gasket (For Key 14) WPL 318658 Contact Us For Availability
15
Oven Door Spring WPL 334722 Contact Us For Availability
16
Valve Switches WPL 326870 Contact Us For Availability
16
Main WPL 327204 Contact Us For Availability
16
Oven Light WPL 334351 Contact Us For Availability
16
Lens WPL 336943 Contact Us For Availability
16
Gasket (For Key 18) WPL 318657 Contact Us For Availability
16
Body side (White) WPL 335826 Contact Us For Availability
16
Body Side (Wheat) WPL 335829 Contact Us For Availability
16
Body Side (Almond) WPL 335830 Contact Us For Availability
17
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
17
Switch-Thermostat WPL 318432 Contact Us For Availability
18
Thermostat (Inc`s Key 16) WPL 330596 Contact Us For Availability
18
Broiler Drawer Guide (Inc`s 20,21) (Left) WPL 296324 Contact Us For Availability
18
Broiler Drawer Guide (Inc`s 20,21) (Right) WPL 296325 Contact Us For Availability
19
Switch-Gas Valve WPL 312457 Contact Us For Availability
19
Broiler Drawer (Inc`s. 20, 21) WPL 331566 Contact Us For Availability
20
Gas Valve (Inc`s. Key 21) WPL 332001 Contact Us For Availability
20
Roller WPL 69006 Contact Us For Availability
21
Gasket (For Key 20) WPL 313563 Contact Us For Availability
21
Rivet WPL 70275 Contact Us For Availability
22
Manifold Pipe WPL 333907 Contact Us For Availability
22
Broiler Drawer Spring WPL 327481 Contact Us For Availability
23
Pressure Regulator WPL 324528 Contact Us For Availability
23
Shoulder Bolt WPL 329271 Contact Us For Availability
24
Tubing 3/8`` (Inc`s. Key 9) WPL 295037 Contact Us For Availability
24
Broiler Drawer Hinge (Right) WPL 327482 Contact Us For Availability
24
Broiler Drawer Hinge (Left) WPL 327483 Contact Us For Availability
25
Baffle - Oven Burner WPL 329316 Contact Us For Availability
25
Broiler Drawer Bottom WPL 331554 Contact Us For Availability
26
Oven Burner Asm (Inc`s. Key 25, 29, 30) WPL 329651 Contact Us For Availability
27
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
27
Handle WPL 334848 Contact Us For Availability
28
Control Valve (Inc`s. 31 & 35) WPL 321755 Contact Us For Availability
28
Spacer WPL 302343 Contact Us For Availability
29
Air Shutter WPL 312988 Contact Us For Availability
29
Broiler Door Panel (White) WPL 332137 Contact Us For Availability
29
Broiler Door Panel (Wheat) WPL 332140 Contact Us For Availability
29
Broiler Door Panel (Almond) WPL 332141 Contact Us For Availability
30
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
30
Adjustment Screw WPL 312989 Contact Us For Availability
31
Pilot (Inc`s. Key 35) WPL 318486 Contact Us For Availability
32
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
32
Broiler Pand WPL 331593 Contact Us For Availability
33
G.M. Compression Sleeve 3/16`` WPL 120488 Contact Us For Availability
33
broiler door lining WPL 331567 Contact Us For Availability
34
G.M. Compression Nut 3/16`` WPL 120487 Contact Us For Availability
34
Broiler Pan Grid WPL 331588 Contact Us For Availability
35
Orifice Cup (For Key 31) WPL 318485 Contact Us For Availability
35
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
36
Electrode WPL 327217 Contact Us For Availability
36
Oven Lamp Bulb Holder WPL 295974 Contact Us For Availability
37
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
37
Thermostat Bulb Clip WPL 115533 Contact Us For Availability
38
Tubing 3/16`` WPL 322447 Contact Us For Availability
38
Oven Bottom WPL 331539 Contact Us For Availability
39
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
39
Oven Rack WPL 326068 Contact Us For Availability
40
Clip WPL 106767 Contact Us For Availability
40
Oven Door Seal WPL 326047 Contact Us For Availability
41
Nut WPL 239764 Contact Us For Availability
41
Door Seal Retainer WPL 327875 Contact Us For Availability
42
Front Frame WPL 334054 Contact Us For Availability
43
Insulation Retainer WPL 328984 Contact Us For Availability
44
Oven Top & Sides WPL 326040 Contact Us For Availability
45
Oven Body WPL 331586 Contact Us For Availability
47
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
48
Disconnect WPL 232150 Contact Us For Availability
49
Wire Cover-Backguard Bottom WPL 327355 Contact Us For Availability
50
C WPL 320983 Contact Us For Availability
51
WPL 235822 WPL 235822 Contact Us For Availability
52
WPL 111257 WPL 111257 Contact Us For Availability
A1
Set-On Griddle WPL 289671 Contact Us For Availability
× ![]()
